DBS3-60N rebar double bender

Our Products

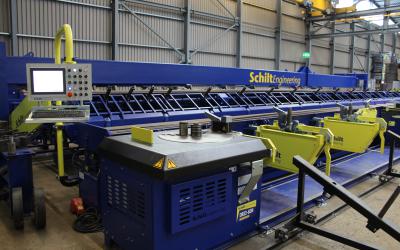

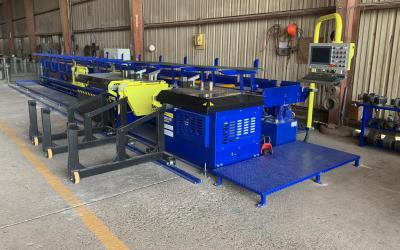

Double bending line for rebars up to Ø50mm at 850N/mm²

Automatic bending of bars on two bending heads, with one operator
Shortest possible minimum size of 105 cm between the bending heads; great freedom in the producible bar shapes

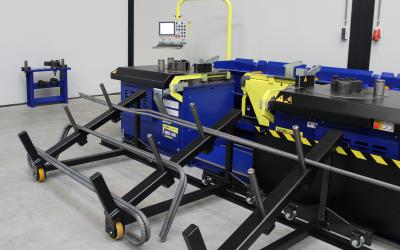

Automatically swiveling support arms between the bending heads
Optimal clamping of several bars through segmented clamping system

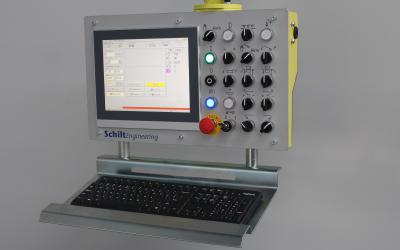

Modern control with freely programmable bar shapes, touchscreen, production statistics and graphical interface

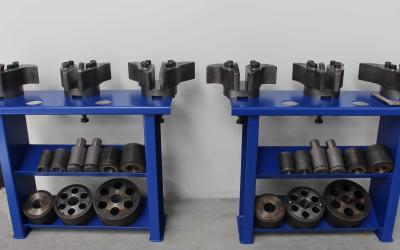

Great freedom in available bending rollers (bending in positive rotation) and bending hearts (bending in positive and negative rotation)
Automatic segment bending to create large radii
Available in left and right version for optimal integration into existing production process/factory layout

Technical Specifications

Bar diameter	Ø10	Ø12	Ø14	Ø16	Ø20	Ø25	Ø28	Ø32	Ø36	Ø40	Ø50
Max. number of bars per cycle with bending mandrels	8	7	6	5	4	3	3	2	1	1	1
Max. number of bars per cycle with bending hearts	8	7	6	5	4	3	2	2	1

Infinite bending speed

The bending speed is automatically adjusted according to the bar diameter and leg length. The speeds and settings can be adjusted according to customer requirements via parameters.

Bending wing

Due to the large bending plate, bending rollers up to Ø400mm can be used without additional accessories. With the optional bending wing bending rollers up to Ø600mm can be used.

Adapter set for small bending rollers

Adapter set for application of small bending rollers (Ø44, Ø50 and Ø60mm); especially for bending small diameters.

Automatic adjustment of material guides on the support arms and adjustment of the clamps, when changing reinforcing steel diameter or bending tools.

Safety scanner can be mounted on the stationary bending machine, when the operator comes within reach of the bending plate, the bending speed is automatically adjusted and, if necessary, stopped.
