Description

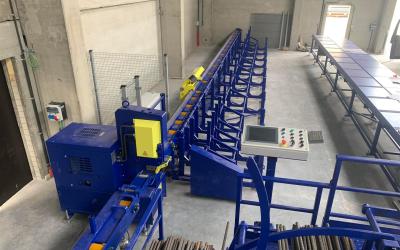

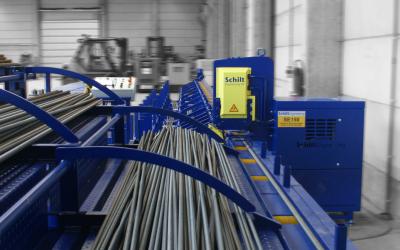

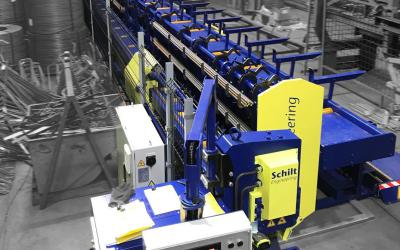

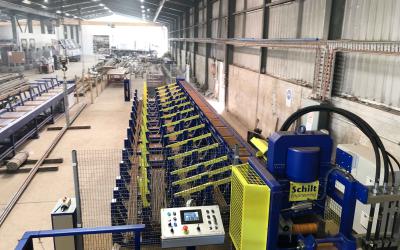

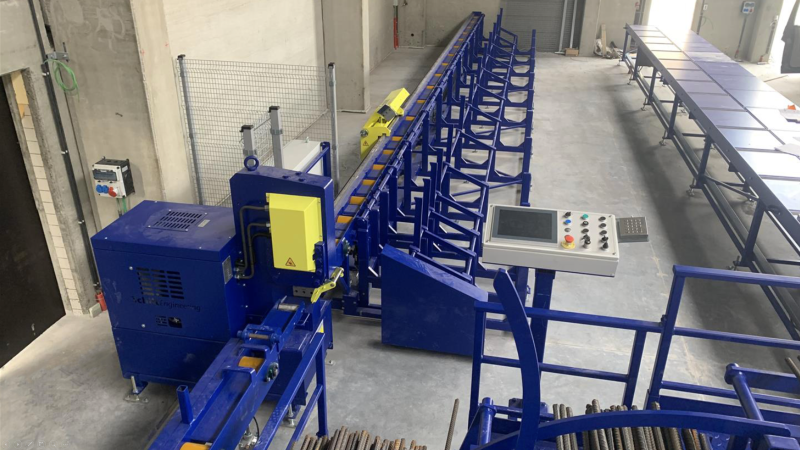

Active storage rack for rebar with 1 or up to 6 levels
Electrically driven entry conveyor with coated rollers
Hydraulic rebar cutting machine with 150mm or 300mm blade width
Automatic length stop for precise length adjustment

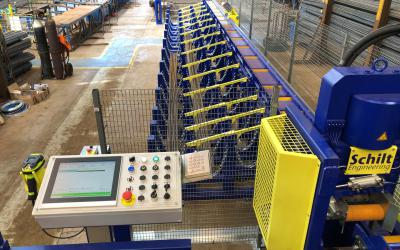

PLC control with touch panel, possibility to set up to 5 different cutting lengths in one cycle
Automatic ejection after cut, at pre-selected position, for maximum utilization of collection boxes
Possibility to integrate bending table/rebar double bender
Easy operation, low maintenance
Capacity approx. 5 - 15 tons per shift (150mm blade) or approx. 10 - 25 tons per shift (300mm blade)
Technical specifications
Technical Specifications
| Bar diameter | Ø8 | Ø10 | Ø12 | Ø14 | Ø16 | Ø20 | Ø25 | Ø28 | Ø32 | Ø40 | Ø50 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Flexbar-AE 150 max. number of bars per cut | 15 | 13 | 11 | 9 | 8 | 6 | 4 | 2 | 2 | 1 | 1 |
| Flexbar-AE 300 max. number of bars per cut | 30 | 28 | 20 | 18 | 16 | 13 | 10 | 7 | 6 | 5 | 2 |
