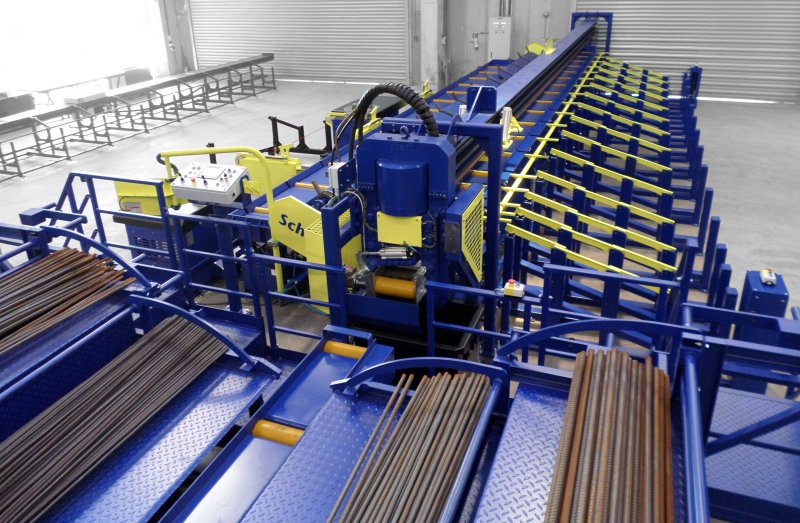

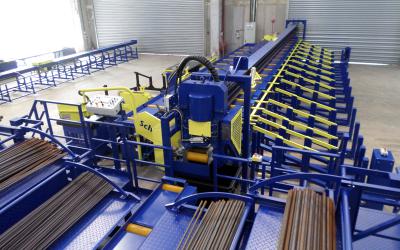

Description

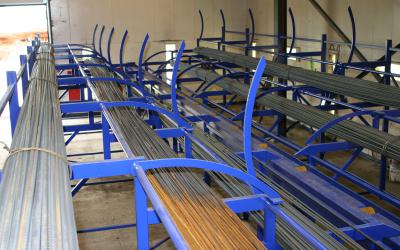

Active storage rack for rebar with 1 or up to 6 levels
Electrically driven entry conveyor with coated rollers
Hydraulic rebar cutting machine with 150mm or 300mm blade width
Automatic length stop (cantilevered construction) for precise cutting length adjustment

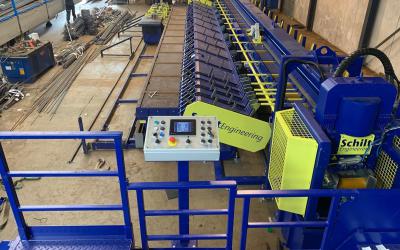

PLC control with touch panel, possibility to set up to 5 different cutting lengths in one cycle

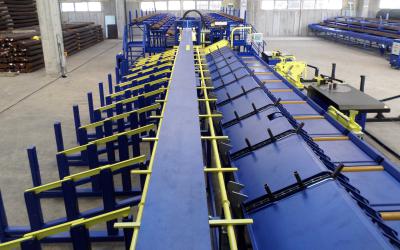

Automatic ejection after cut, at pre-selected position, for maximum utilization of collection boxes
Ejecting to both sides offers better logistics and the possibility of integrating bending table, double bender or extra collecting boxes
Easy operation, low maintenance
Capacity approx. 10 - 20 tons per shift (150mm blade) or approx. 15 - 30 tons per shift (300mm blade)
Technical specifications
Technical Specifications
| Bar diameter | Ø8 | Ø10 | Ø12 | Ø14 | Ø16 | Ø20 | Ø25 | Ø28 | Ø32 | Ø40 | Ø50 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Flexbar-DAE 150 max. number of bars per cut | 15 | 13 | 11 | 9 | 8 | 6 | 4 | 2 | 2 | 1 | 1 |
| Flexbar-DAE 300 max. number of bars per cut | 24 | 22 | 20 | 17 | 15 | 13 | 8 | 7 | 6 | 5 | 2 |
