Description
Unmatched build quality, heavy machine resulting in very stable weld quality.
Welding time is independently adjustable in relation to the rotational speed.
Improved and new design, rack and pinion drive, hardened components for minimal wear.

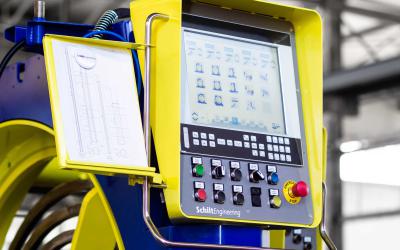

Modern intuitive controls, for quick and easy control and setting of the cages.
Setting aid in the control unit for positioning the clamping bushes, resulting in shorter setting times.
Programmable distances for placing any reinforcement rings.
Technical specifications
Technical Specifications
| Model | SLP-1200 | SLP-1500 | SLP-2000 | SLP-3000 |
|---|---|---|---|---|
| Max. cage length | 12 - 24 meter | 12 - 24 meter | 12 - 24 meter | 16 - 24 meter |
| Cage diameter | 150 - 1200 mm | 200 - 1500 mm | 400 - 2000 mm | 1000 - 3000 mm |
| Diameter of longitudinal bars | 12 - 32 mm | 12 - 32 mm | 12 - 32 mm | 12 - 55 mm |
| Diameter of spiral bars | 6 - 16 mm | 6 - 16 mm | 6 - 16 mm | 8 - 20 mm |
| Spiral pitch | 50 - 500 mm | 50 - 500 mm | 50 - 500 mm | 50 - 500 mm |
