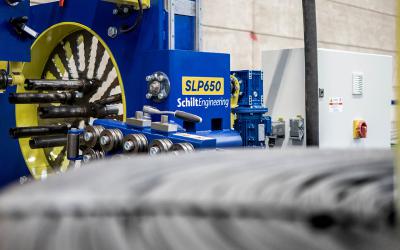

Pile cage machine SLP650

Pile cage machine SLP650

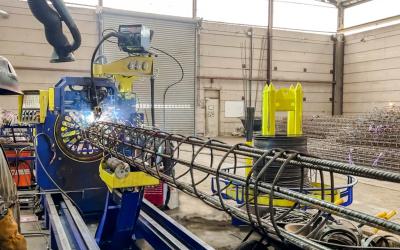

Rebar pile cage welding machine for cages from Ø150mm up to Ø650mm.

Unmatched build quality, heavy machine resulting in very stable weld quality.
Welding time is independently adjustable in relation to the rotational speed.
Improved and new design, rack and pinion drive, hardened components for minimal wear.

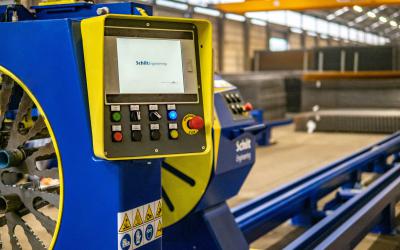

Modern intuitive controls, for quick and easy control and setting of the cages.
Setting aid in the control unit for positioning the clamping bushes, resulting in shorter setting times.
Programmable distances for placing any reinforcement rings.



Technical specifications
Technical Specifications
Model SLP-650
Max. cage length 12 or 18 meter
Cage diameter 150 - 650 mm
Diameter of longitudinal bars 12 - 20 mm
Diameter of spiral bars 6 - 12 mm
Spiral pitch 50 - 500 mm
