Description

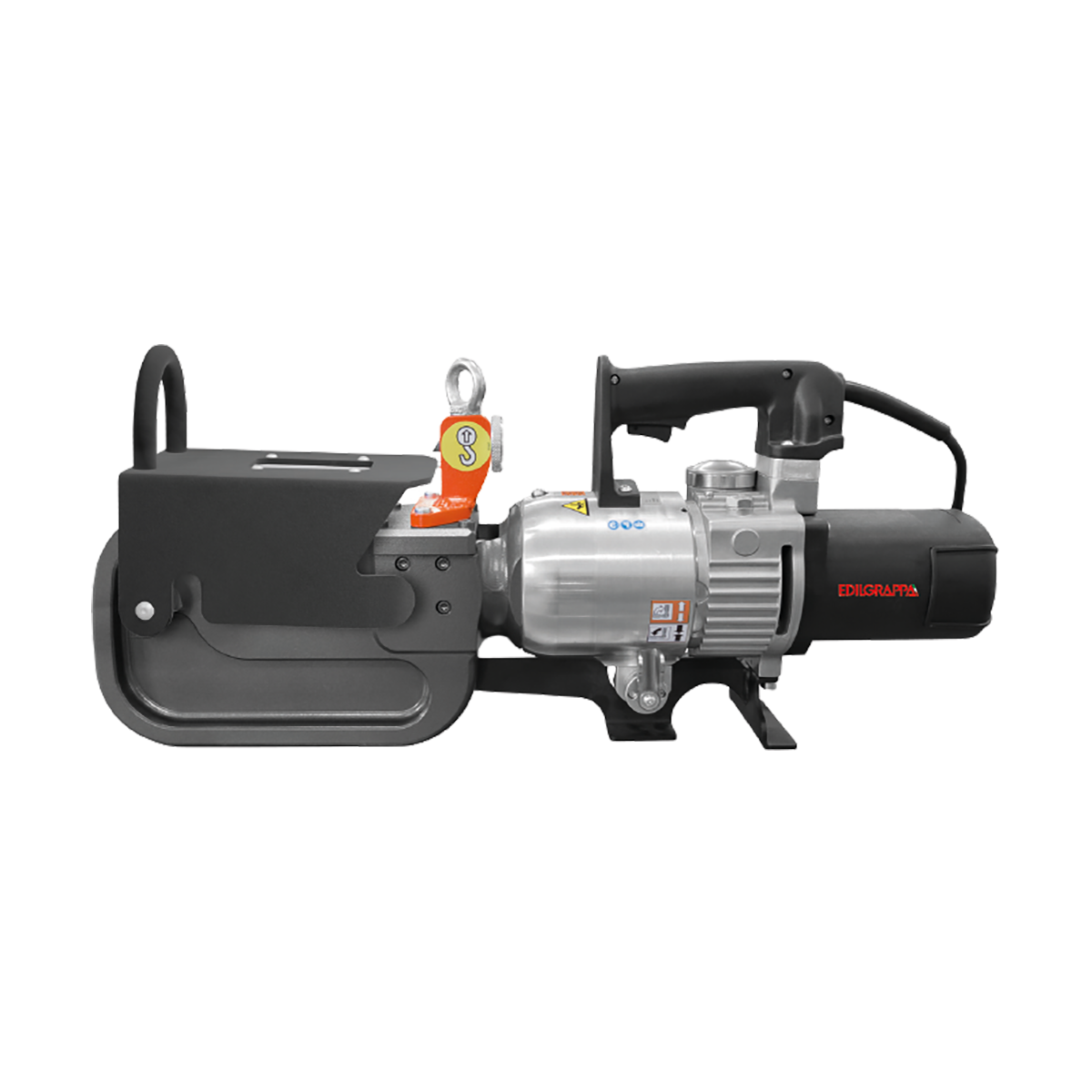

The Electric Chain Cutter TC32DE is an electro-hydraulic tool produced by Edilgrappa that is ideal for cutting .
A right solution for sectors is the Edilgrappa Electric Chain Cutter TC32DE.
The hydraulic functioning of the TC32DE is provided by the electric power supply, which guarantees easy handling.
Technical specifications
Technical Specifications
| Cutting capacity |
ø 32 mm (Grado 70) ø 26 mm (Grado 80) ø 20 mm (Grado 100) |
| Cutting force | 471 kN (41.8 t) |
| Working pressure | 60 Mpa (600 bar) |
| Power supply | Main |
| Motor |
230V: 1400 W – 50Hz – 6.8 A 120V: 1300 W – 60Hz – 11 A |
| Cylinder | Double Acting |
| Weight | 43 kg |
| Dimensions LxWxH | 700 x 192 x 321 mm |
