flat metal bars
ideal for building and industrial works

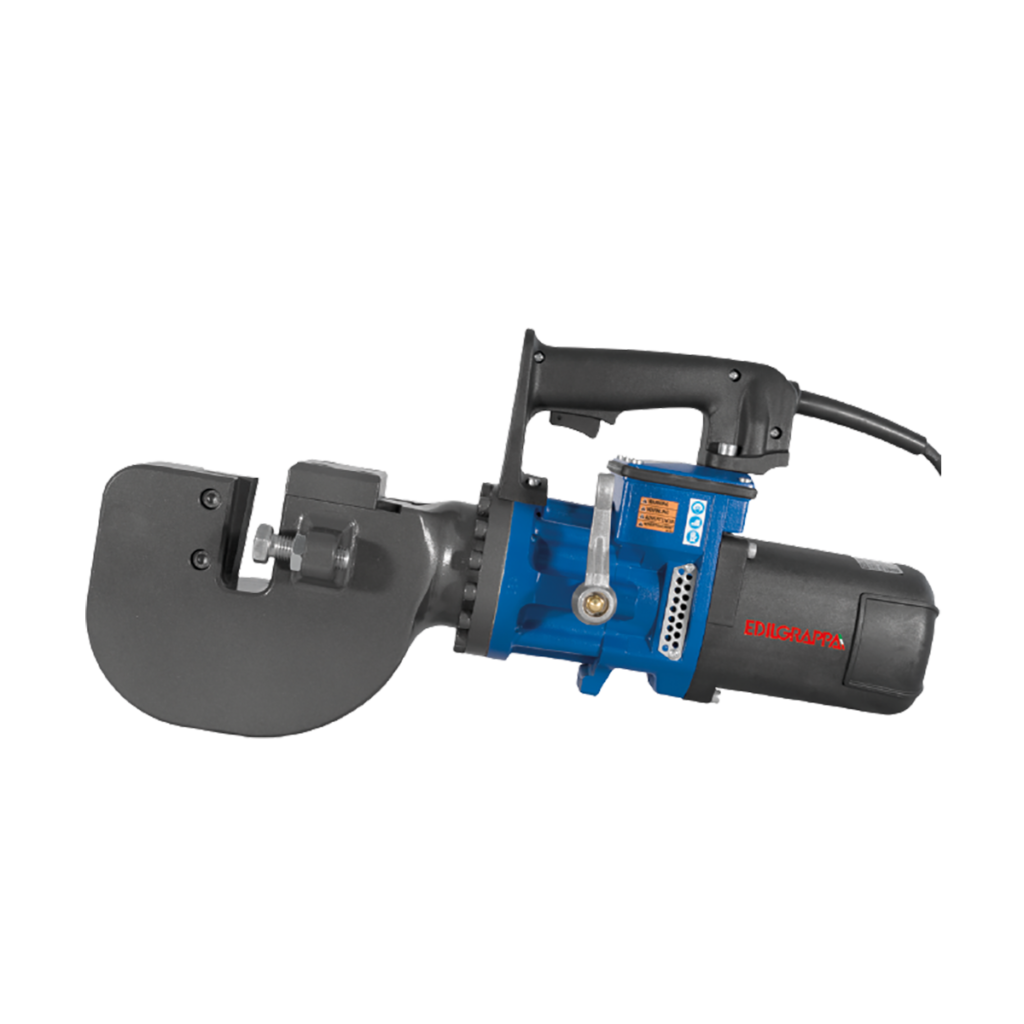

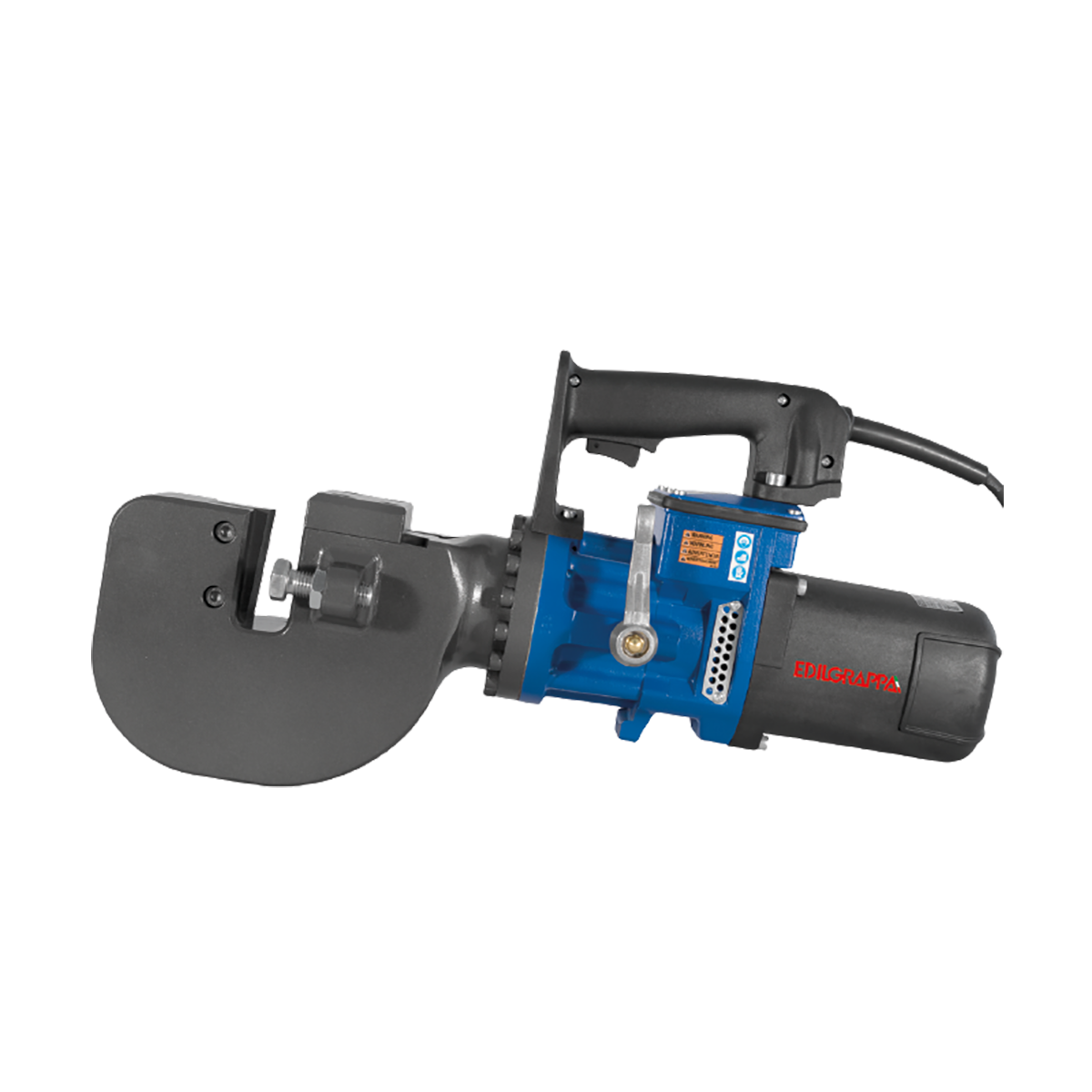

In designing and manufacturing TP70 Edilgrappa has developed a Handheld Flat Bar Cutter with professional application as punching flat metal bars.
In building and industrial works, Edilgrappa TP70 is frequently used.
The hydraulic functioning of the TP70 is provided by the electric power supply, which guarantees easy handling.
| Cutting capacity | 70 x 15 mm (Rm: 45 daN/mm²) |
| Cutting force | 265 kN (27 t) |
| Working pressure | 60 Mpa (600 bar) |
| Power supply | Main |
| Motor |
230V: 1400 W – 50Hz – 6.8 A 120V: 1300 W – 60Hz – 11 A |
| Cylinder | Single Acting |
| Weight | 27 kg |
| Dimensions LxWxH | 555 x 175 x 298 mm |
