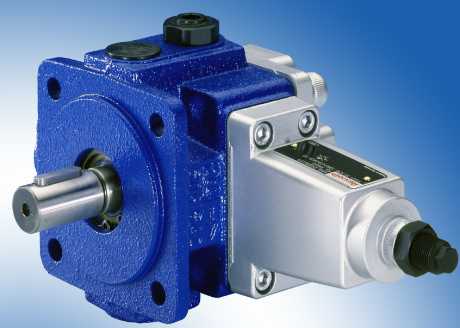

Bosch Rexroth PV7 pumps

The PV7 type piloted vane pumps with variable displacement are characterized, from the construction point of view, by a reduced pulsation of the flow rate and achieve high repeatability accuracy with low pressure peaks, in case of regulation in decrease of flow rate. The optimization of the noise level on the screw with high variability guarantees a reduced operating noise level. Hydrodynamically lubricated plain bearings enable a long service life. The thruster axial compensation offers optimum volumetric efficiency.

Features
Size 14 ... 150
Frame sizes 10, 16, 25, 40, 63 and 100
Nominal pressure up to 160 bar
Maximum flow 270 l / min
1X Series
Low noise
Long life bearings thanks to hydrodynamic lubrication
Possibility of regulating pressure and flow
Low hysteresis
Minimum up and down adjustment times
