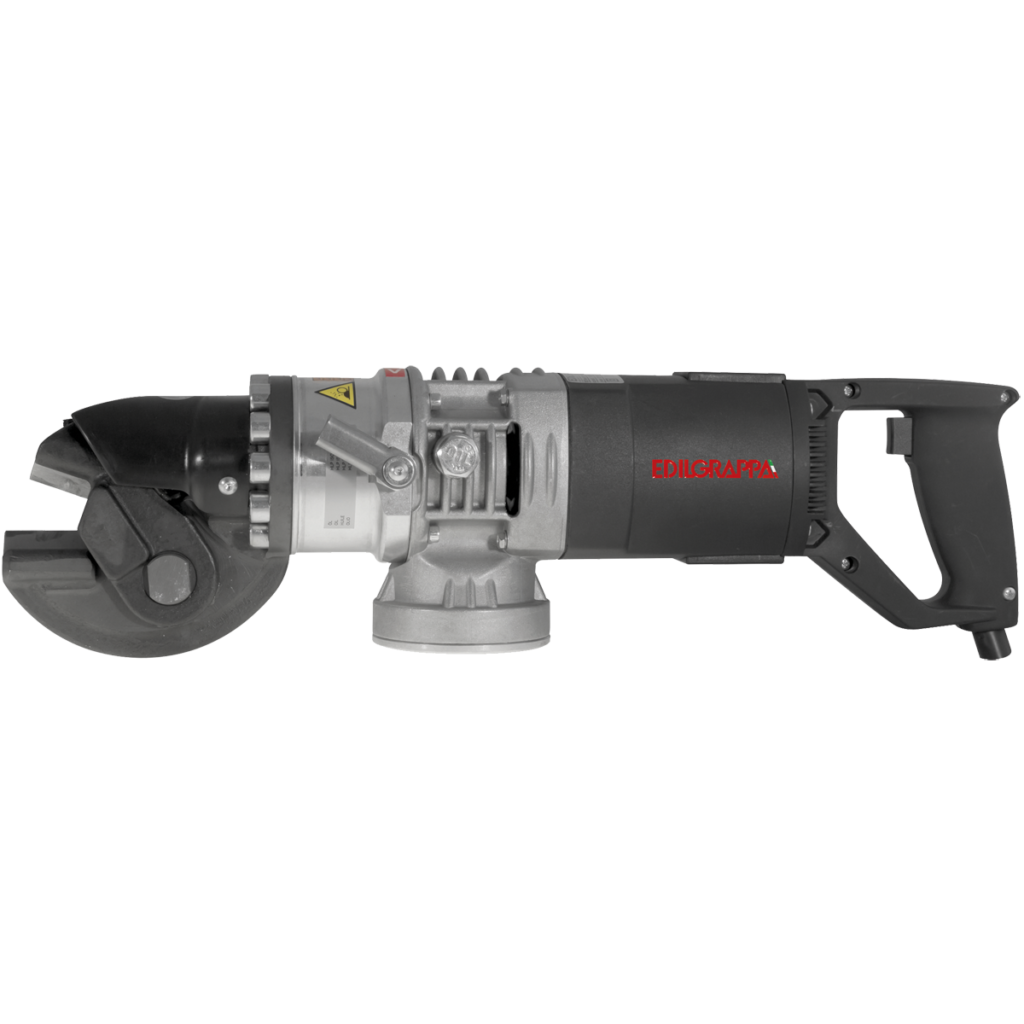

MU16 for Strands

המוצרים שלנו

MU16 for Strands

Portable Strand Cutter

  • rebars, steel wire mesh and welded wire mesh, padlocks, seals and chains
  • ideals for building, industrial works and rescue
  • 360° rotating head
  • small dimensions allow to reach confined places

Contact us for more information

In designing and manufacturing MU16 for Strands Edilgrappa has developed a Hydraulic Cutter for Strands with professional applications as cutting rebars, steel wire mesh and welded wire mesh, padlocks, seals and chains.

Its small size makes the MU16 for Strands a very useful Hydraulic Cutter for Strands when working in small and complicated spaces, where portable tools are needed.

Hydraulic Cutter for Strands MU16 for Strands: made by Edilgrappa in Italy for building, industrial works and rescue.

The hydraulic functioning of the MU16 for Strands is provided by the electric power supply, which guarantees easy handling.

The MU16 for Strands is equipped with an anti-jamming release lever.

Technical Specifications
Cutting capacity ø 12 mm (Rm: 160 daN/mm²)
Cutting force 171 kN (17.4 t)
Piston force 147 kN (15 t)
Working pressure 56 Mpa (560 bar)
Power supply Main
Motor 230V: 1100 W – 50Hz – 5.3 A

120V: 1200 W – 60Hz – 10 A

Cylinder Single Acting
Weight 9.5 kg
Dimensions LxWxH 525 x 124 x 148 mm
