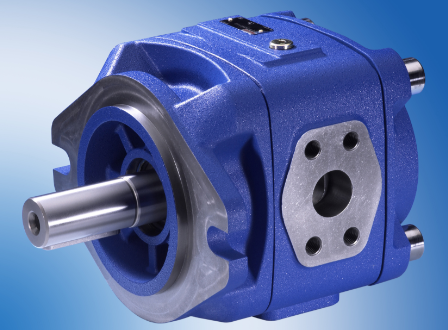

PGH Bosch Rexroth pumps
Internal gear pumps characterized by silent operation, modest flow rate pulsation and high efficiency even at low speed and viscosity values.
These pumps are suitable for wide ranges of fluid speeds and viscosities, in addition, the combination of all nominal and construction sizes and the combination with vane and axial piston pumps is possible.
PGH-2X
Frame size 2: Size 5 ... 8
Frame size 3: Size 11 ... 16
Maximum pressure 350 bar
Maximum displacement 16 cm³
PGH-3X
Frame size 4: Size 20 ... 63
Frame size 5: Size 63 ... 250
Maximum pressure 350 bar
Maximum displacement 250 cm³
|
Grandezza costruttiva |
PGH2 |
||||
|
Grandezza nominale |
5 |
6 |
8 |
||
|
Cilindrata |
V g |
cm³ |
5,24 |
6,5 |
8,2 |
|
Numero di giri |
n min |
min-1 |
600 |
600 |
600 |
|
n max |
min-1 |
3000 |
3000 |
3000 |
|
|
Pressione d'esercizio, intermittente |
Bar |
350 |
350 |
350 |
|
|
Portata volumetrica |
qV |
l/min |
7,5 |
9,3 |
11,8 |
|
Pressione nominale, continua |
p N |
Bar |
315 |
315 |
315 |
|
Massa |
m |
kg |
4,3 |
4,4 |
4,6 |
| R902208632 | A11VO260DRG/11R-NPD12K04+PGH4 |
| R987405963 | A4VSO250DR/30R + A4VSO250DR /30R+ PGH5 & |
| R907212205 | KIT JT TH7 DIVERS POUR CDE LMNP/GHJK |
| R900888553 | KIT RIPARAZIONE PGH2-2X/008 |
| R900891747 | KIT RIPARAZIONE PGH3-1X/016 |
| R900888554 | KIT RIPARAZIONE PGH3-2X/011 |
| R900888555 | KIT RIPARAZIONE PGH3-2X/013 |
| R900888556 | KIT RIPARAZIONE PGH3-2X/016 |
| R900888522 | KIT RIPARAZIONE PGH4-2X/020 |
| R900888523 | KIT RIPARAZIONE PGH4-2X/025 |
| R900888524 | KIT RIPARAZIONE PGH4-2X/032 |
| R900888525 | KIT RIPARAZIONE PGH4-2X/040 |
| R900888514 | KIT RIPARAZIONE PGH4-2X/050 |
| R961005139 | KIT RIPARAZIONE PGH4-3X/025.V |
| R900888526 | KIT RIPARAZIONE PGH5-2X/063 |
| R900888527 | KIT RIPARAZIONE PGH5-2X/080 |
| R900888528 | KIT RIPARAZIONE PGH5-2X/100 |
| R900888518 | KIT RIPARAZIONE PGH5-2X/125 |
| R900888519 | KIT RIPARAZIONE PGH5-2X/160 |
| R900888521 | KIT RIPARAZIONE PGH5-2X/250 |
| R961003931 | KIT RIPARAZIONE PGH5-3X/080.V |
| R961003933 | KIT RIPARAZIONE PGH5-3X/125.V |
| R961003936 | KIT RIPARAZIONE PGH5-3X/250.V |
| R900088545 | PARTICOLARE GENERI PGH/N4-2X+A10VSO18.S |
| R900088547 | PARTICOLARE GENERI PGH/N4-2X+PGF3-3X/ & |
| R900984745 | PARTICOLARE GENERI PGH/N4-2X+PGH2/3/GF2& |
| R900984748 | PARTICOLARE GENERI PGH/N4-2X+PGH4-2X.R/& |
| R900088539 | PARTICOLARE GENERI PGH/N5-2X+A10VSO18.S |
| R900088541 | PARTICOLARE GENERI PGH/N5-2X+PGF3-3X/ & |
| R900984739 | PARTICOLARE GENERI PGH/N5-2X+PGH2/3/GF2& |
| R900088542 | PARTICOLARE GENERI PGH/N5-2X+PGH4-2X. & |
| R900088544 | PARTICOLARE GENERI PGH/N5-2X+PGH5-2X.R & |
| R900088543 | PARTICOLARE GENERI PGH/N5-2X+PVV4-1X. & |
| R900886137 | PARTICOLARE GENERI PGH2/3-2X+PGH2/3-2X/& |
| R901155287 | PARTICOLARE GENERI PGH4-3X+GF3-3X/ & |
| R901155288 | PARTICOLARE GENERI PGH4-3X+GH2/3-2X/ & |
| R901155289 | PARTICOLARE GENERI PGH4-3X+GH4-3X..R/ & |
| R901253382 | PARTICOLARE GENERI PGH4-3X+PGZ4/5-1X & |
| R901155282 | PARTICOLARE GENERI PGH5-3X+GF3-3X/ & |
| R901155283 | PARTICOLARE GENERI PGH5-3X+GH2/3-2X/ & |
| R901155284 | PARTICOLARE GENERI PGH5-3X+GH4-3X..R/ & |
| R901155285 | PARTICOLARE GENERI PGH5-3X+GH5-3X..R/ & |
| R901238497 | PARTICOLARE GENERI PGH5-3X+PGZ4/5-1X & |
| R901155286 | PARTICOLARE GENERI PGH5-3X+VV4/5-1X..J/& |
| R900968999 | PGH2-2X/005RE07VU2 |
| R900972378 | PGH2-2X/005RR07VU2 |
| R900961550 | PGH2-2X/006LR07VU2 |
| R900951301 | PGH2-2X/006RE07VU2 |
| R900961549 | PGH2-2X/006RR07VU2 |
| R900951302 | PGH2-2X/008RE07VU2 |
| R900961551 | PGH2-2X/008RR07VU2 |
| R900951303 | PGH3-2X/011RE07VU2 |
| R900961556 | PGH3-2X/011RR07VU2 |
| R900951304 | PGH3-2X/013RE07VU2 |
| R900961557 | PGH3-2X/013RR07VU2 |
| R900961561 | PGH3-2X/016LR07VU2 |
| R900951305 | PGH3-2X/016RE07VU2 |
| R900961558 | PGH3-2X/016RR07VU2 |
| R901248934 | PGH3-2X/016RR07WU2 |
| R900086397 | PGH4-2X/020RE11VE4 |
| R900932139 | PGH4-2X/020RE11VU2 |
| R900086356 | PGH4-2X/020RR11VU2 |
| R900086380 | PGH4-2X/025LR11VU2 |
| R900086398 | PGH4-2X/025RE11VE4 |
| R900932140 | PGH4-2X/025RE11VU2 |
| R901045068 | PGH4-2X/025RE11WU2 |
| R900086357 | PGH4-2X/025RR11VU2 |
| R900777200 | PGH4-2X/025RR11WU2 |
| R900932141 | PGH4-2X/032RE11VU2 |
| R901091819 | PGH4-2X/032RE11WU2 |
| R900086358 | PGH4-2X/032RR11VU2 |
| R987259702 | PGH4-2X/032RR11VU2+PGH3-2X/011RR07VU2 |
| R901236836 | PGH4-2X/032RR11WU2 |
| R900086321 | PGH4-2X/040RE11VU2 |
| R900086359 | PGH4-2X/040RR11VU2 |
| R900932163 | PGH4-2X/050RE11VE4 |
| R900932159 | PGH4-2X/050RE11VU2 |
| R900086360 | PGH4-2X/050RR11VU2 |
| R901253499 | PGH4-2X/050RR11WU2 |
| R900932165 | PGH4-2X/063RE07VE4 |
| R900086325 | PGH4-2X/063RE07VU2 |
| R900086362 | PGH4-2X/063RR07VU2 |
| R900086326 | PGH4-2X/080RE07VU2 |
| R900086363 | PGH4-2X/080RR07VU2 |
| R900086405 | PGH4-2X/100RE07VE4 |
| R900086364 | PGH4-2X/100RR07VU2 |
| R901147100 | PGH4-3X/020RE11VU2 |
| R901147110 | PGH4-3X/020RR11VU2 |
| R901147101 | PGH4-3X/025RE11VU2 |
| R901147111 | PGH4-3X/025RR11VU2 |
| R901357519 | PGH4-3X/025RR11WU2 |
| R901147107 | PGH4-3X/032RE11VE4 |
| R901147102 | PGH4-3X/032RE11VU2 |
| R901296753 | PGH4-3X/032RE11WU2 |
| R901147112 | PGH4-3X/032RR11VU2 |
| R901147103 | PGH4-3X/040RE11VU2 |
| R901296755 | PGH4-3X/040RE11WU2 |
| R901147113 | PGH4-3X/040RR11VU2 |
| R901147109 | PGH4-3X/050RE11VE4 |
| R901147104 | PGH4-3X/050RE11VU2 |
| R901296757 | PGH4-3X/050RE11WU2 |
| R901147114 | PGH4-3X/050RR11VU2 |
| R901274915 | PGH4-3X/050RR11WU2 |
| R901286226 | PGH4-3X/063RR11VU2 |
| R900932168 | PGH5-2X/063RE11VU2 |
| R900932172 | PGH5-2X/063RR11VU2 |
| R901091823 | PGH5-2X/063RR11WU2 |
| R900932173 | PGH5-2X/080RE11VE4 |
| R900086460 | PGH5-2X/080RE11VU2 |
| R900086516 | PGH5-2X/080RR11VU2 |
| R900086498 | PGH5-2X/100LE11VU2 |
| R900086461 | PGH5-2X/100RE11VU2 |
| R900932175 | PGH5-2X/125RE11VE4 |
| R900932169 | PGH5-2X/125RE11VU2 |
| R900086518 | PGH5-2X/125RR11VU2 |
| R900086538 | PGH5-2X/160LR07VU2 |
| R900742813 | PGH5-2X/160RE07WU2 |
| R900086520 | PGH5-2X/160RR07VU2 |
| R900086503 | PGH5-2X/200LE07VU2 |
| R900086557 | PGH5-2X/200RE07VE4 |
| R987128379 | PGH5-2X/200RE18VU2 |
| R900086521 | PGH5-2X/200RR07VU2 |
| R900086504 | PGH5-2X/250LE07VU2 |
| R900086522 | PGH5-2X/250RR07VU2 |
| R901147122 | PGH5-3X/063RE11VE4 |
| R901147115 | PGH5-3X/063RE11VU2 |
| R901147129 | PGH5-3X/063RR11VU2 |
| R901282739 | PGH5-3X/063RR11WU2 |
| R901147123 | PGH5-3X/080RE11VE4 |
| R901147116 | PGH5-3X/080RE11VU2 |
| R901147130 | PGH5-3X/080RR11VU2 |
| R901296758 | PGH5-3X/080RR11WU2 |
| R901147124 | PGH5-3X/100RE11VE4 |
| R901147117 | PGH5-3X/100RE11VU2 |
| R901147131 | PGH5-3X/100RR11VU2 |
| R901296759 | PGH5-3X/100RR11WU2 |
| R901376012 | PGH5-3X/125LR11WU2 |
| R901147125 | PGH5-3X/125RE11VE4 |
| R901147118 | PGH5-3X/125RE11VU2 |
| R901147132 | PGH5-3X/125RR11VU2 |
| R901272915 | PGH5-3X/125RR11WU2 |
| R901147126 | PGH5-3X/160RE11VE4 |
| R901147119 | PGH5-3X/160RE11VU2 |
| R901147133 | PGH5-3X/160RR11VU2 |
| R901272916 | PGH5-3X/160RR11WU2 |
| R901147127 | PGH5-3X/200RE07VE4 |
| R901147120 | PGH5-3X/200RE07VU2 |
| R901147134 | PGH5-3X/200RR07VU2 |
| R901147128 | PGH5-3X/250RE07VE4 |
| R901147121 | PGH5-3X/250RE07VU2 |
| R901147135 | PGH5-3X/250RR07VU2 |
| R900888558 | SET DI GUARNIZIONI PGH2/3-2X/..V |
| R900984759 | SET DI GUARNIZIONI PGH4-2X/.V |
| R961005137 | SET DI GUARNIZIONI PGH4-3X/.V |
| R900984760 | SET DI GUARNIZIONI PGH5-2X/.V |
| R961003937 | SET DI GUARNIZIONI PGH5-3X/.V |
| R902602674 | S-MAG.-P. GHPY037N54F05-001-12V#19NM/5NM |
| R902602675 | S-MAG.-P. GHPY037N54F05-002-24V#19NM/5NM |
