SLP1200-3000 Pile cage machine

המוצרים שלנו

Rebar pile cage welding machine for cages from Ø150mm up to Ø3000mm, from 12m up to 24m.

Unmatched build quality, heavy machine resulting in very stable weld quality.
Welding time is independently adjustable in relation to the rotational speed.
Improved and new design, rack and pinion drive, hardened components for minimal wear.
Modern intuitive controls, for quick and easy control and setting of the cages.
Setting aid in the control unit for positioning the clamping bushes, resulting in shorter setting times.
Programmable distances for placing any reinforcement rings.

Technical Specifications

Model	SLP-1200	SLP-1500	SLP-2000	SLP-3000
Max. cage length	12 - 24 meter	12 - 24 meter	12 - 24 meter	16 - 24 meter
Cage diameter	150 - 1200 mm	200 - 1500 mm	400 - 2000 mm	1000 - 3000 mm
Diameter of longitudinal bars	12 - 32 mm	12 - 32 mm	12 - 32 mm	12 - 55 mm
Diameter of spiral bars	6 - 16 mm	6 - 16 mm	6 - 16 mm	8 - 20 mm
Spiral pitch	50 - 500 mm	50 - 500 mm	50 - 500 mm	50 - 500 mm

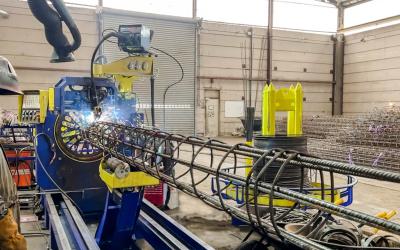

Automatic welding of round or rectangular cages. Good welding quality due to accurate rebar detection. The welding time is adjustable.

Hydraulic clamps for fixing the longitudinal bars, to shorten the set-up times when starting a new production.

Powered arms that remove the produced cage from the machine and thus increase production.
