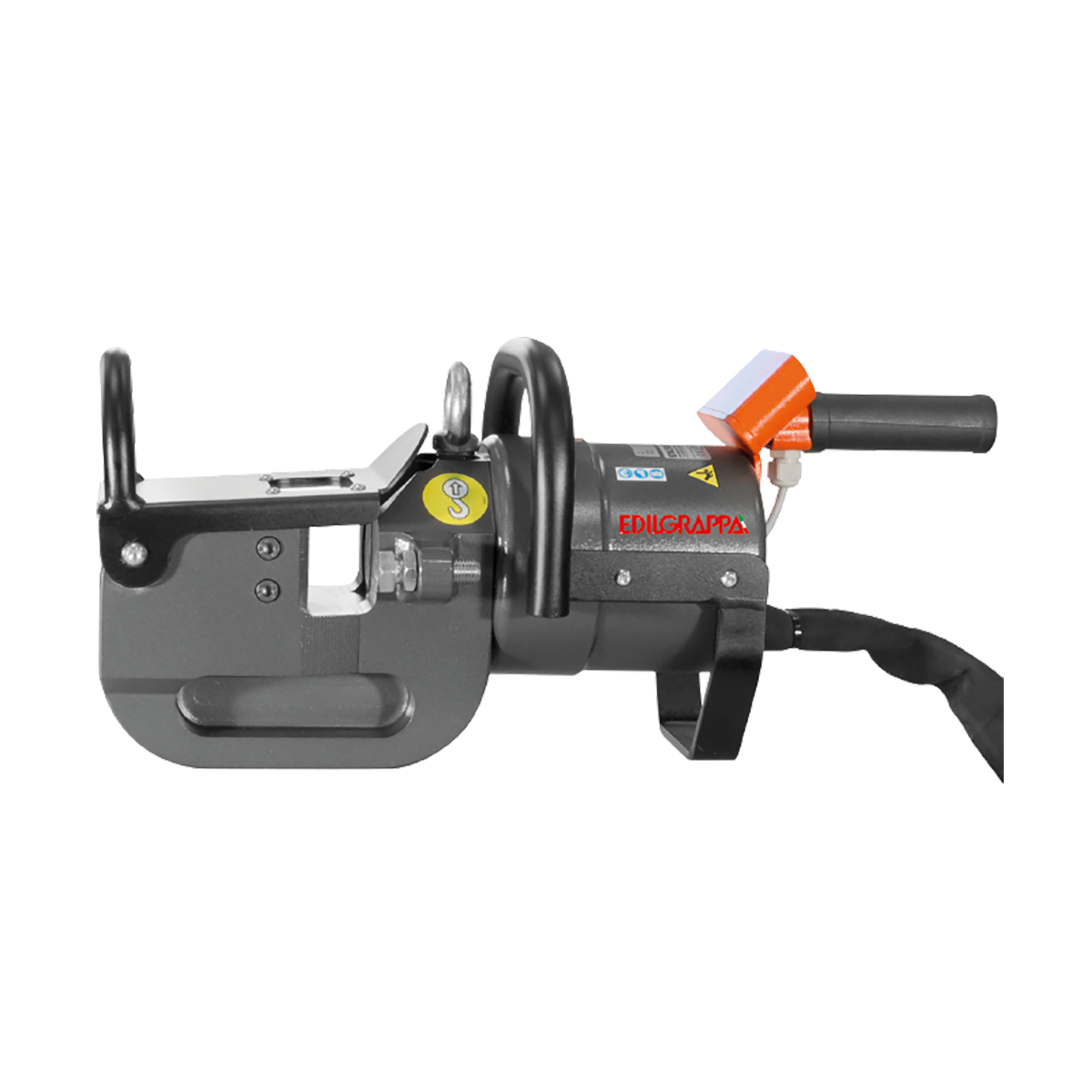

Edilgrappa T35/63N, Electric Driven Hydraulic Cutter, is an hydraulic tool produced in Italy to cut rebars, rods, threaded bars, sprues and aluminium castings.
A right solution for the building and industrial sectors, is the Edilgrappa Electric Driven Hydraulic Cutter T35/63N.
Ask Edilgrappa for information on the best hydraulic control unit needed to operate the T35/63N Hydraulic Cutter.
3 m (10 ft) – 700 bar hoses included.
Technical Specifications
| Cutting capacity | ø 35 mm – 1 3/8″
(Rm: 60 daN/mm²) |
| Cutting force | 606 kN (61.8 t) |
| Working pressure | 70 Mpa (700 bar) |
| Cylinderd | Double acting |
| Weight | 48 kg – 105.8 lbs |
| Dimensions LxWxH | 565 x 213 x 259 mm |
