TP110

Flat Bar Cutter with up to 110 x 10mm Cutting Capacity

  • flat metal bars
  • ideal for building and industrial works
  • small dimensions allow to reach confined places

Richiedi maggiori informazioni

Contact us for more information

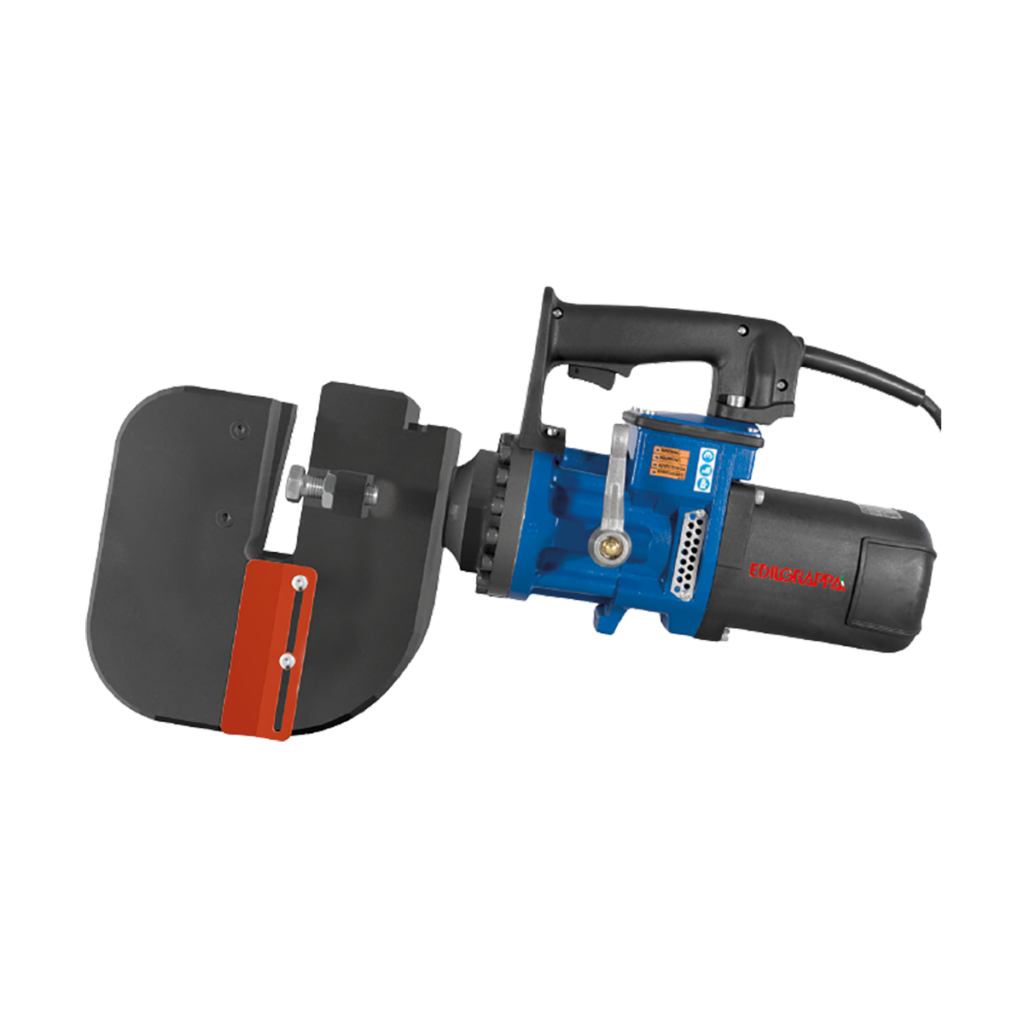

In designing and manufacturing TP110 Edilgrappa has developed a Hydraulic Cutter for Flat Bars with professional application as punching flat metal bars.

Due to its small size, this Hydraulic Cutter for Flat Bars can easily operate when the room is tight and complicated.

Hydraulic Cutter for Flat Bars TP110: made by Edilgrappa in Italy for building and industrial works.

The TP110 is a Hydraulic Cutter for Flat Bars that can be easily transported wherever it is needed thanks to its integrated electric motor. Different versions are available depending on the electrical network of the country of application.

Technical Specifications
Cutting capacity 110 x 10 mm (Rm: 45 daN/mm²)
Cutting force 309 kN (31.5 t)
Working pressure 70 Mpa (700 bar)
Power supply Main
Motor 230V: 1400 W – 50Hz – 6.8 A

120V: 1300 W – 60Hz – 11 A

Cylinder Single Acting
Weight 40 kg
Dimensions LxWxH 572 x 175 x 342 mm
