Walvoil SD monoblock control valve

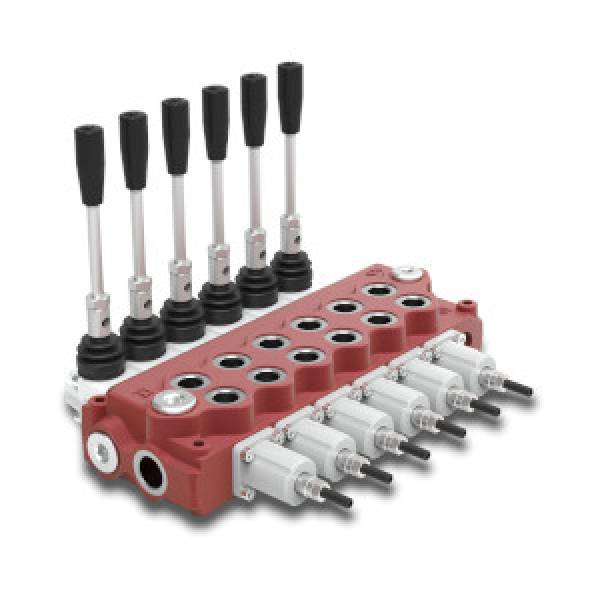

Simple, compact, and heavy duty designed monoblock valves from 1 to 6 sections for open and closed centre hydraulic systems.

Fitted with a main pressure relief valve and a load check valve.
Available with parallel or series circuit.
Diameter 20 mm.
A wide variety of service ports and circuit valves.
Available manual, pneumatic, hydraulic, electro-hydraulic and remote with flexible cables spool control kits.

Share on

Technical Specifications

Nominal flow rating		70 l/min
Operating pressure	Parallel circuit	315 bar (4600 psi)
Series circuit	250 bar (3600 psi)
Max back pressure	On outlet T	25 bar (360 psi)
Internal leakage A(B)→T	∆p=100 bar (1450 psi) fluid and valve 40°C	3 cm3/min (0,18 in3/min)
Fluid		Mineral base oil
Fluid temperature	with NBR seals	from -20° to 80°C
with FPM (VITON) seals	from -20° to 100°C
Viscosity	Working range	from 15 to 75 mm2/s
Min	12 mm2/s
Max	400 mm2/s
Max level of contamination		-/19/16 - ISO 4406
Ambient temperature for working conditions	With mechanical control	from -40° to 60°C
With hydraulic, pneumatic controls	from -30° to 60°C
With electric controls	from -20° to 50°C
